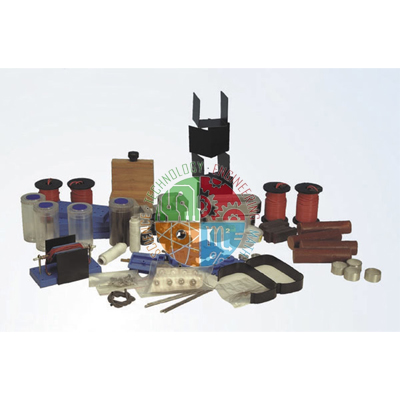

Electromagnet Kit
Product Code : JLI-PLE-10728
Quick Answer: The Electromagnet Kit is a comprehensive set of essential items for basic electromagnetism experiments, including 8 alloy and 8 ceramic ferrite magnets, 6 plotting compasses, C-cores, coil formers, copper wire and a bottle of iron filings.
Last updated: 18 October 2026
Key Features
- Supports experiments on magnets, eddy currents, force between currents and the magnetic field.
- Two magnet types: anisotropic alloy and anisotropic ceramic ferrite.
- Double C-cores, steel yokes and armatures with axle rods for building electromagnetic devices.
- Plotting compasses and iron filings for mapping fields.
- Flash lamp and neon bulbs, MES bulb holders and 100 Ω carbon resistors for circuit work.
Technical Specifications
| Specification | Value |
|---|---|
| Magnets | 8 anisotropic alloy; 8 anisotropic ceramic ferrite |
| Magnetic yokes | 4 steel |
| C-cores | Double C-cores (4 each), with clips |
| Coils | Coil formers (4 each); reels of copper wire |
| Compasses | 6 plotting compasses; 5 hardboard compass formers |
| Iron filings | 1 bottle |
| Rings | Aluminium rings; split aluminium rings |
| Lamps | Flash lamp bulbs; 5 neon bulbs; 8 MES bulb holders |
| Resistors | 4 carbon, 100 Ω |
| Supports | 4 support bases; armatures with axle rods; wood clamp; wood block |
| Fixings | 8 split pins; 16 rivets |
| Other items | 1 length latex rubber tubing; reels of tape; reels of white cotton; 4 sheets white paste board; plain postcards |
How It Is Used
Students assemble coils, cores and magnets from the kit to investigate magnetic fields, eddy currents and the force between currents, using the compasses and iron filings to trace field patterns.
Frequently Asked Questions
What experiments can be done with the Electromagnet Kit?
General investigation of magnets, eddy currents, force between currents and investigation of the magnetic field are among the basic experiments the kit supports.
