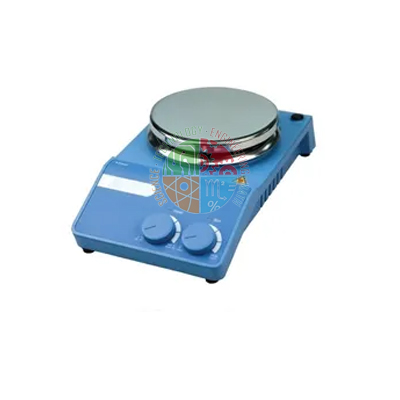

Hotplate and Magnetic Stirrer
Product Code : JLI-CLE-10552
Quick Answer: The Hotplate and Magnetic Stirrer is a laboratory magnetic stirrer with a heated 135 mm stainless steel, ceramic-coated work plate, a 0-1500 rpm speed range, heating from room temperature to 340 °C and a safety circuit that stops heating at 350 °C.
Last updated: 18 October 2026
Key Features
- Stainless steel work plate with a ceramic coating to resist corrosion.
- Separate safety circuit stops heating automatically when the temperature reaches 350 °C.
- Variable-speed DC brushless motor designed to hold a constant speed when the load changes.
- Strong magnetic adhesion keeps the stirrer bar stable at the bottom of the container.
- Enclosed assembly with protection class IP42.
- Speed and temperature set on scales; one stirring position.
Technical Specifications
| Specification | Value |
|---|---|
| Work plate | 135 mm, stainless steel with ceramic coating |
| Speed range | 0–1500 rpm |
| Motor | DC brushless; 18 W input, 10 W output |
| Heating output | 500 W |
| Heating temperature range | RT–340 °C |
| Safety temperature | 350 °C |
| Max. stirring quantity (water) | 20 L |
| Max. stirrer bar | 80 mm |
| Power | 530 W |
| Supply | 200–240 V AC, 50/60 Hz |
| Protection class | IP42 |
| Dimensions (W x D x H) | 160 × 280 × 85 mm |
| Weight | 2.8 kg |
| Permissible relative humidity | 80% |
How It Is Used
Place the vessel on the plate with a stirrer bar inside, then set the stirring speed and heating temperature on their scales. The motor keeps the bar turning at a steady rate while the liquid warms, so solutions are mixed and heated evenly; if the plate reaches 350 °C the safety circuit cuts the heating.
Frequently Asked Questions
What is the maximum temperature of the Hotplate and Magnetic Stirrer?
The heating range runs from room temperature to 340 °C, and a separate safety circuit stops heating automatically at 350 °C.
How much liquid can the Hotplate and Magnetic Stirrer stir?
Up to 20 L of water, with a stirrer bar of up to 80 mm, at speeds from 0 to 1500 rpm.
