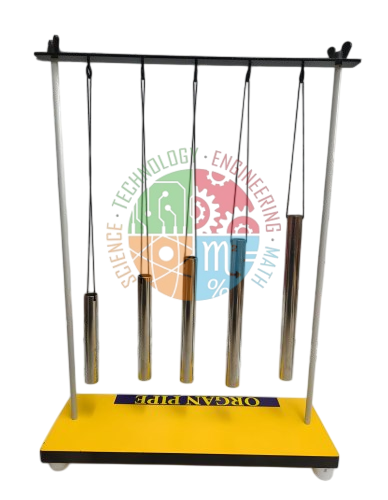

Quick Answer:The Sound Pipes Model is a set of pipes of different lengths on a support frame. Blowing across or into each pipe gives a different pitch, showing how the length of an air column affects frequency.
Last updated: 18 October 2026
Key Features
Set of pipes in graded lengths on a support frame.
Sound is made by blowing air across or into the pipes.
Shows the link between pipe length, frequency and pitch.
Explains the science behind wind instruments; no electricity needed.
Technical Specifications
Specification
Value
Components
Set of pipes of varying lengths, support frame
Pipe material
Metal or PVC, on a base stand
Operation
Air-blown, manual
How It Is Used
The pipes stand on a stable surface and students blow across or into each one in turn, listening to the note it makes. Arranging them from shortest to longest makes the gradual change in pitch easy to hear and leads into a discussion of vibrating air columns.
Frequently Asked Questions
How does the Sound Pipes Model show the effect of length?
Each pipe has a different length and gives a different pitch. Placed in order from shortest to longest, they let students hear the pitch change step by step.
