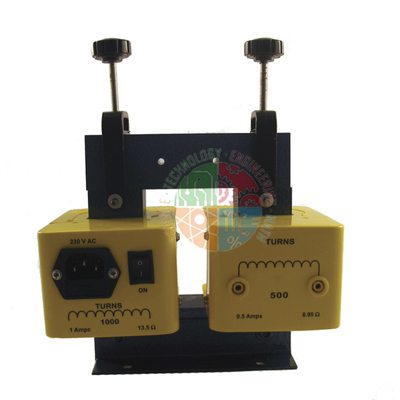

Quick Answer:The Demountable Transformer Kit has a laminated low-loss core of U-shaped, highly permeable metal sheets, closed by two clamps with tightening screws, onto which clearly labelled coils are fitted to demonstrate step-up and step-down transformers.
Last updated: 18 October 2026
Key Features
Laminated low-loss core for attaching different coils.
Core of highly permeable U-shaped metal sheeting, closed by two clamps with tightening screws.
Clearly labelled coils.
Shows the transformer principle used in domestic appliances and in power transmission.
Technical Specifications
Specification
Value
Core
Laminated, low-loss, U-shaped permeable metal sheets
Core closure
Two clamps with tightening screws
Coils
Clearly labelled
How It Is Used
Different coils are placed on the core to change the turns ratio, and the output is measured to show the voltage being stepped up or down. This links classroom work to how transformers are used in household appliances and grid power transmission.
Frequently Asked Questions
How is the core of the Demountable Transformer Kit assembled?
The core is made of highly permeable U-shaped metal sheeting and is closed with two clamps fitted with tightening screws.
