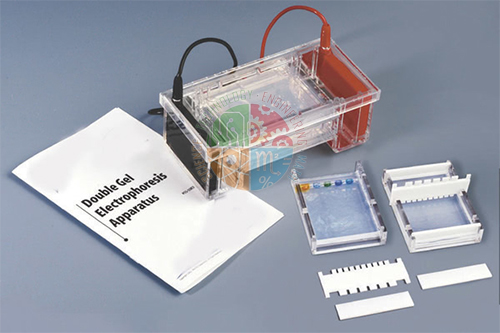

Double Gel Electrophoresis Apparatus
Product Code : JLI-BLE-10656
Quick Answer: The Double Gel Electrophoresis Apparatus is a clear acrylic chamber with platinum electrodes that runs two agarose gels at the same time. Wells can be formed at the end or the centre of each gel.
Last updated: 18 October 2026
Key Features
- Runs two gels simultaneously in one leak-free, one-piece moulded chamber.
- Clear acrylic body with pure platinum electrodes.
- Casting trays hold melted agarose without tape or snap-on ends.
- Wells can be formed at the end or the centre of the gel.
- Built-in safety features stop the chamber being used unless the lid is locked in place.
- Supplied as a gel electrophoresis kit with two casting trays, six 12-well combs and patch cords; the power supply is sold separately.
Technical Specifications
| Specification | Value |
|---|---|
| Chamber | One-piece moulded, clear acrylic, leak-free |
| Electrodes | Pure platinum |
| Gels per run | Two |
| Casting trays | Two (included) |
| Well-forming combs | Six, 12-well (included) |
| Patch cords | Included |
| Well position | End or centre of the gel |
| Tank size | 155 mm (L) x 88 mm (W) x 62.5 mm (H) |
| Tray size | 100 mm (L) x 75 mm (W) |
| Power supply | Not included, sold separately |
How It Is Used
Agarose is poured into the casting trays and a comb is set in place to form the wells, either at one end or in the middle of the gel. The set gels go into the buffer-filled chamber, samples are loaded, the lid is locked and the patch cords are connected to a separate electrophoresis power supply so the samples separate along the gel.
Frequently Asked Questions
Is a power supply included with the Double Gel Electrophoresis Apparatus?
No. The power supply is not included and is available separately as the Electrophoresis Power Supply.
What comes with the Double Gel Electrophoresis Apparatus?
The chamber is supplied with two casting gel trays, six 12-well forming combs and patch cords.
What size are the tank and trays?
The tank measures 155 mm (L) x 88 mm (W) x 62.5 mm (H), and each tray is 100 mm (L) x 75 mm (W).
