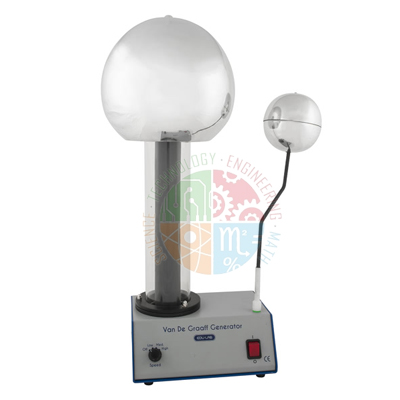

Van De Graaff Generator With Accessory Kit
Product Code : JLI-PLE-10745
Quick Answer: The Van De Graaff Generator With Accessory Kit is a mains-driven electrostatic generator with a 220 mm dome on an acrylic pillar, producing 200,000 – 400,000 volts and sparks up to about 50 mm. It works with 100 mm conducting spheres and has a dust cover.
Last updated: 18 October 2026
Key Features
- Conducting dome on an acrylic pillar, charged by a rubber belt.
- Belt driven by an electric motor concealed in the metal base, run from the mains through a three-wire cable.
- Charge made by friction between the belt and two rollers, one polythene and one acrylic, and collected by a metal gauze.
- 4 mm base socket takes a conducting sphere on a cranked rod, or a wire to a separate sphere on an acrylic rod.
- Dust cover provided.
Technical Specifications
| Specification | Value |
|---|---|
| Dome diameter | 220 mm |
| Total height | 500 mm |
| Base (max.) | 218 x 182 x 93 mm |
| Operating voltage | 220 – 240 V AC |
| Fuse | 315 mA / 250 V |
| Dome capacitance | 15 pF (approx.) |
| Max. intermittent current | 6 µA (approx.) |
| Max. spark length | 50 mm (approx.) |
| Output | 200,000 – 400,000 V |
| Conducting sphere diameter | 100 mm |
| Base socket | 4 mm |
| Dust cover | Included |
How It Is Used
Once switched on, the belt carries charge up to the dome, building a high potential for electrostatic demonstrations such as sparks to a nearby conducting sphere. The second sphere can sit in the base socket or stand separately on its insulating rod, connected by a wire.
Frequently Asked Questions
What voltage does the Van De Graaff Generator With Accessory Kit produce?
Its output is 200,000 – 400,000 volts, with a maximum spark length of approx. 50 mm.
How is the Van De Graaff Generator With Accessory Kit powered?
An electric motor in the metal base drives the belt from the mains supply through a three-wire cable, at 220 to 240 V AC.
