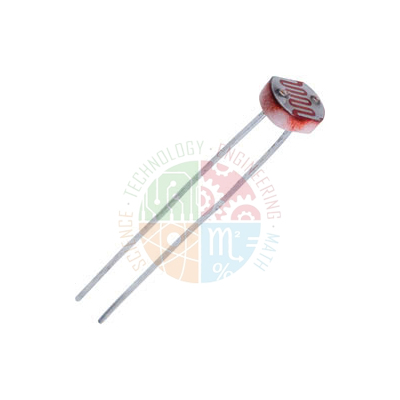

Miniature LDR

Miniature LDR

Product Code : JLI-PLE-10620

Quick Answer: The Miniature LDR is a 5 mm light dependent resistor in an epoxy package whose resistance falls as light increases, from 1 MΩ in the dark to 2–4 kΩ at 100 lux. Its peak spectral response is at 540 nm.

Last updated: 18 October 2026

Key Features

  • Semiconductor resistor whose conductance changes with light level.
  • Resistance reduces as more light falls on the device.
  • Compact epoxy package, 5 mm in diameter with a 3 mm lead pitch.
  • Rated up to 150 V peak AC or DC and 100 mW.

Technical Specifications

SpecificationValue
Peak spectral response540 nm
Dark resistance1 MΩ
Resistance at 10 lux10–20 kΩ
Resistance at 100 lux2–4 kΩ
Max. voltage150 V peak AC or DC
Power dissipation100 mW
Diameter5 mm
Lead pitch3 mm
Operating temperature–30 °C to +70 °C
PackageEpoxy

How It Is Used

In electronics practicals the LDR serves as a light sensor. Connected in a circuit with a meter, it shows resistance falling as illumination rises from darkness through 10 lux to 100 lux.

Frequently Asked Questions

What is the resistance of the Miniature LDR in the dark?

Its dark resistance is 1 MΩ. This falls to 10–20 kΩ at 10 lux and 2–4 kΩ at 100 lux.
