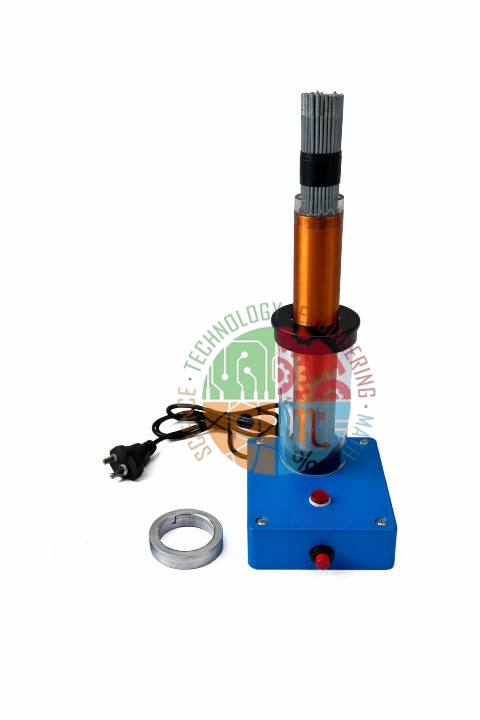

Ring Launcher
.png)
Product Code : SCL-PLE-11589
The JLab India Ring Launcher (Elihu Thomson’s Apparatus) is a high-impact laboratory instrument designed for the empirical study of electromagnetism, induced eddy currents, and Lenz's Law. Optimized for Secondary and University-level Physics laboratories, it provides a dramatic physical demonstration of magnetic repulsion between a current-carrying solenoid and a conductive ring. Durable system ensures standardized instructional delivery for electromagnetics, induction, and AC circuit modules.
Technical Specifications
| Tender Specification | OEM Technical Detail |
| Material Grade | High-Conductivity Thick Copper Wire Solenoid on a Stable Base |
| Core Configuration | Removable Laminated Soft Iron Core for flux concentration |
| Ring Components | Set of Three (3): 1x Solid Aluminium, 1x Split Aluminium, 1x Plastic |
| Operational Principle | Electromagnetic Induction & Magnetic Force Repulsion |
| Primary Interaction | Alternating Current (AC) induced Eddy Currents in conductive rings |
| Safety Features | Durable base construction with insulated terminal housing |
| Functional Result | Vertical propulsion of solid aluminium ring (~several feet) |
Certification | ISO certificates available on request |
| HS Code | 9023.00.00 (Educational/Demonstrational Physics Apparatus) |
Key Pedagogical Outcomes (Bloom’s Taxonomy Alignment)
- Induction Interface -> Facilitates student visualization of how a primary AC magnetic field induces a secondary current in a nearby conductor, supporting Electromagnetism Module 101 (Understanding).
- Lenz's Law Verification -> Enables the physical study of magnetic opposition; the ring is propelled because its induced magnetic field opposes the solenoid's changing field (Applying).
- Eddy Current Connectivity Analysis -> Supports the Analysis of why a solid aluminium ring launches while a split ring or plastic ring remains stationary, highlighting the need for a continuous conductive path.
- Trajectory & Force Evaluation -> Allows students to Evaluate the impact of launch angle, initial current (speed), and air resistance on the ring’s flight path and height (Evaluating).
International Logistics & Compliance
- Packaging: Export-grade ISPM-15 compliant Corrugated/Thermocol box with internal high-density stabilization for the heavy iron core and copper solenoid.
- Documentation: Includes Manufacturer’s Authorization Form (MAF), Certificate of Conformance (CoC), and English Technical User Guides.
- Durability: Tropicalized design with high-quality insulation to prevent chromatic or electrical degradation over extended institutional lifecycles.
Direct OEM Sourcing Advantages
- Vertical Integration: Total control over solenoid winding density and core lamination ensures maximized flux density and consistent launch performance across bulk rollouts.
- Reliability Protocols: Batch-tested for electrical coil integrity and structural base stability under repeated high-force launch cycles.
- Institutional Support: Guaranteed direct factory availability for replacement ring sets (Aluminium/Plastic) and specialized iron cores ensures maximized asset lifecycle and superior long-term ROI.
